警报洞察
这是一项实验性功能，不建议在生产环境中使用。有关该功能进度的更新或如果您想留下反馈，请加入 OpenSearch 论坛的讨论。
OpenSearch Dashboards 助手警报洞察有助于生成警报摘要，并根据触发警报的日志提供日志模式。
配置警报洞察
要配置警报洞察，请按照以下步骤操作。
先决条件
在使用警报洞察之前，您的集群上必须安装 alerting 和 alerting-dashboards 插件。默认情况下，这些插件作为标准 OpenSearch 发行版的一部分安装。有关更多信息，请参阅安装插件。
步骤 1：启用警报洞察
要启用警报洞察，请配置以下 opensearch_dashboards.yml 设置
assistant.alertInsight.enabled: true
步骤 2：创建代理
为了协调警报洞察，您需要创建必要的代理。通过发送以下请求，创建用于创建所有必要代理的工作流模板
请求
POST /_plugins/_flow_framework/workflow?provision=true
{
"name": "Alert Summary Agent",
"description": "Create Alert Summary Agent using Claude on BedRock",
"use_case": "REGISTER_AGENT",
"version": {
"template": "1.0.0",
"compatibility": ["2.17.0", "3.0.0"]
},
"workflows": {
"provision": {
"user_params": {},
"nodes": [
{
"id": "create_claude_connector",
"type": "create_connector",
"previous_node_inputs": {},
"user_inputs": {
"version": "1",
"name": "Claude instant runtime Connector",
"protocol": "aws_sigv4",
"description": "The connector to BedRock service for Claude model",
"actions": [
{
"headers": {
"x-amz-content-sha256": "required",
"content-type": "application/json"
},
"method": "POST",
"request_body": "{\"prompt\":\"\\n\\nHuman: ${parameters.prompt}\\n\\nAssistant:\", \"max_tokens_to_sample\":${parameters.max_tokens_to_sample}, \"temperature\":${parameters.temperature}, \"anthropic_version\":\"${parameters.anthropic_version}\" }",
"action_type": "predict",
"url": "https://bedrock-runtime.us-west-2.amazonaws.com/model/anthropic.claude-instant-v1/invoke"
}
],
"credential": {
"access_key": "<YOUR_ACCESS_KEY>",
"secret_key": "<YOUR_SECRET_KEY>",
"session_token": "<YOUR_SESSION_TOKEN>"
},
"parameters": {
"region": "us-west-2",
"endpoint": "bedrock-runtime.us-west-2.amazonaws.com",
"content_type": "application/json",
"auth": "Sig_V4",
"max_tokens_to_sample": "8000",
"service_name": "bedrock",
"temperature": "0.0001",
"response_filter": "$.completion",
"anthropic_version": "bedrock-2023-05-31"
}
}
},
{
"id": "register_claude_model",
"type": "register_remote_model",
"previous_node_inputs": {
"create_claude_connector": "connector_id"
},
"user_inputs": {
"description": "Claude model",
"deploy": true,
"name": "claude-instant"
}
},
{
"id": "create_alert_summary_ml_model_tool",
"type": "create_tool",
"previous_node_inputs": {
"register_claude_model": "model_id"
},
"user_inputs": {
"parameters": {
"prompt": "You are an OpenSearch Alert Assistant to help summarize the alerts.\n Here is the detail of alert: ${parameters.context};\n The question is: ${parameters.question}."
},
"name": "MLModelTool",
"type": "MLModelTool"
}
},
{
"id": "create_alert_summary_agent",
"type": "register_agent",
"previous_node_inputs": {
"create_alert_summary_ml_model_tool": "tools"
},
"user_inputs": {
"parameters": {},
"type": "flow",
"name": "Alert Summary Agent",
"description": "this is an alert summary agent"
}
}
]
}
}
}
有关代理模板示例，请参阅Flow Framework 示例模板。记下代理 ID；您将在下一步中使用它。
对于此示例，使用模板创建以下代理
- 警报洞察代理，参见流程模板
- 两个摘要代理
这些代理需要不同的提示。日志模式摘要的提示必须包含占位符
${parameters.topNLogPatternData}以及用于指导 LLM 有效使用此信息的额外说明。请注意，日志模式仅适用于使用 OpenSearch Dashboards 创建的查询监控器。
步骤 3：创建根代理
接下来，为上一步中创建的代理创建根代理。
为警报摘要代理创建根代理
POST /.plugins-ml-config/_doc/os_summary
{
"type": "os_root_agent",
"configuration": {
"agent_id": "<SUMMARY_AGENT_ID>"
}
}
为包含日志模式的警报摘要代理创建根代理
POST /.plugins-ml-config/_doc/os_summary_with_log_pattern
{
"type": "os_root_agent",
"configuration": {
"agent_id": "<SUMMARY_WITH_LOG_PATTERNS_AGENT_ID>"
}
}
为警报洞察代理创建根代理
POST /.plugins-ml-config/_doc/os_insight
{
"type": "os_root_agent",
"configuration": {
"agent_id": "<ALERT_INSIGHTS_AGENT_ID>"
}
}
创建的 os_insight 代理提供与 OpenSearch 集群指标相关的警报洞察。对于与 OpenSearch 集群指标无关的警报洞察，您需要使用此模板注册一个代理，并将代理名称更改为 KB_For_Alert_Insight。
此示例演示了一个系统索引。在启用安全性的域中，只有超级管理员才有权限执行此代码。有关进行超级管理员调用的信息，请参阅系统索引。有关访问权限，请联系您的系统管理员。
步骤 4：测试代理
您可以通过使用示例负载调用代理来验证代理是否已成功创建。
要测试警报摘要代理，请发送以下请求
POST /_plugins/_ml/agents/<SUMMARY_AGENT_ID>/_execute
{
"parameters": {
"question": "Please summarize this alert, do not use any tool.",
"context": "\n Here is the detail information about alert Error log over 100\n ### Monitor definition\n {\"type\":\"monitor\",\"schema_version\":8,\"name\":\"loghub-apache-error-log\",\"monitor_type\":\"query_level_monitor\",\"enabled\":false,\"enabled_time\":null,\"schedule\":{\"period\":{\"interval\":1,\"unit\":\"MINUTES\"}},\"inputs\":[{\"search\":{\"indices\":[\"loghub-apache-new\"],\"query\":{\"size\":0,\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"10/12/24 11:21 am CST||-1000000h\",\"to\":\"10/12/24 11:21 am CST\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}}}}],\"triggers\":[{\"query_level_trigger\":{\"id\":\"NAq7fpIBRJyww-JMjwP_\",\"name\":\"Error log over 100\",\"severity\":\"1\",\"condition\":{\"script\":{\"source\":\"ctx.results[0].hits.total.value > 100\",\"lang\":\"painless\"}},\"actions\":[]}}],\"last_update_time\":1728714554388,\"owner\":\"alerting\",\"associated_workflows\":[],\"associatedCompositeMonitorCnt\":0,\"item_type\":\"query_level_monitor\",\"id\":\"NQq7fpIBRJyww-JMkAMC\",\"version\":3}\n\n ### Active Alert\n {\"ACTIVE\":1,\"ACKNOWLEDGED\":0,\"ERROR\":0,\"total\":1,\"alerts\":[{\"id\":\"Wgq8fpIBRJyww-JMegNr\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"workflow_id\":\"\",\"workflow_name\":\"\",\"associated_alert_ids\":[],\"schema_version\":5,\"monitor_version\":1,\"monitor_name\":\"loghub-apache-error-log\",\"execution_id\":\"NQq7fpIBRJyww-JMkAMC_2024-10-12T03:18:54.311214115_22d189ce-5e93-4927-b8bb-bcf61b7537e3\",\"trigger_id\":\"NAq7fpIBRJyww-JMjwP_\",\"trigger_name\":\"Error log over 100\",\"finding_ids\":[],\"related_doc_ids\":[],\"state\":\"ACTIVE\",\"error_message\":null,\"alert_history\":[],\"severity\":\"1\",\"action_execution_results\":[],\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"end_time\":null,\"acknowledged_time\":null,\"alert_source\":\"monitor\"}],\"trigger_name\":\"Error log over 100\",\"severity\":\"1\",\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"monitor_name\":\"loghub-apache-error-log\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"alert_source\":\"monitor\",\"triggerID\":\"NAq7fpIBRJyww-JMjwP_\"}\n\n ### Value triggers this alert\n 595\n\n ### Alert query DSL {\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"2024-10-12T03:21:54+00:00||-1000000h\",\"to\":\"2024-10-12T03:21:54+00:00\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}} \n",
}
}
要测试包含日志模式的警报摘要代理，请发送以下请求
POST /_plugins/_ml/agents/<SUMMARY_WITH_LOG_PATTERNS_AGENT_ID>/_execute
{
"parameters": {
"question": "Please summarize this alert, do not use any tool.",
"context": "\n Here is the detail information about alert Error log over 100\n ### Monitor definition\n {\"type\":\"monitor\",\"schema_version\":8,\"name\":\"loghub-apache-error-log\",\"monitor_type\":\"query_level_monitor\",\"enabled\":false,\"enabled_time\":null,\"schedule\":{\"period\":{\"interval\":1,\"unit\":\"MINUTES\"}},\"inputs\":[{\"search\":{\"indices\":[\"loghub-apache-new\"],\"query\":{\"size\":0,\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"10/12/24 11:21 am CST||-1000000h\",\"to\":\"10/12/24 11:21 am CST\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}}}}],\"triggers\":[{\"query_level_trigger\":{\"id\":\"NAq7fpIBRJyww-JMjwP_\",\"name\":\"Error log over 100\",\"severity\":\"1\",\"condition\":{\"script\":{\"source\":\"ctx.results[0].hits.total.value > 100\",\"lang\":\"painless\"}},\"actions\":[]}}],\"last_update_time\":1728714554388,\"owner\":\"alerting\",\"associated_workflows\":[],\"associatedCompositeMonitorCnt\":0,\"item_type\":\"query_level_monitor\",\"id\":\"NQq7fpIBRJyww-JMkAMC\",\"version\":3}\n\n ### Active Alert\n {\"ACTIVE\":1,\"ACKNOWLEDGED\":0,\"ERROR\":0,\"total\":1,\"alerts\":[{\"id\":\"Wgq8fpIBRJyww-JMegNr\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"workflow_id\":\"\",\"workflow_name\":\"\",\"associated_alert_ids\":[],\"schema_version\":5,\"monitor_version\":1,\"monitor_name\":\"loghub-apache-error-log\",\"execution_id\":\"NQq7fpIBRJyww-JMkAMC_2024-10-12T03:18:54.311214115_22d189ce-5e93-4927-b8bb-bcf61b7537e3\",\"trigger_id\":\"NAq7fpIBRJyww-JMjwP_\",\"trigger_name\":\"Error log over 100\",\"finding_ids\":[],\"related_doc_ids\":[],\"state\":\"ACTIVE\",\"error_message\":null,\"alert_history\":[],\"severity\":\"1\",\"action_execution_results\":[],\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"end_time\":null,\"acknowledged_time\":null,\"alert_source\":\"monitor\"}],\"trigger_name\":\"Error log over 100\",\"severity\":\"1\",\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"monitor_name\":\"loghub-apache-error-log\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"alert_source\":\"monitor\",\"triggerID\":\"NAq7fpIBRJyww-JMjwP_\"}\n\n ### Value triggers this alert\n 595\n\n ### Alert query DSL {\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"2024-10-12T03:21:54+00:00||-1000000h\",\"to\":\"2024-10-12T03:21:54+00:00\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}} \n",
"topNLogPatternData": "[[539,["[Sun Dec 04 07:12:44 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 06:19:18 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 07:18:00 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 16:52:49 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 06:59:47 2005] [error] mod_jk child workerEnv in error state 8","[Sun Dec 04 07:11:22 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 07:18:00 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 17:01:47 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 17:31:12 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 05:04:04 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 20:24:49 2005] [error] mod_jk child workerEnv in error state 8","[Sun Dec 04 06:16:23 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 20:47:17 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 06:30:43 2005] [error] mod_jk child workerEnv in error state 6","[Mon Dec 05 06:35:27 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 07:07:30 2005] [error] mod_jk child workerEnv in error state 8","[Sun Dec 04 07:18:00 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 16:32:56 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 17:01:47 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 16:52:49 2005] [error] mod_jk child workerEnv in error state 8"],"[ :: ] [] _ "],[32,["[Sun Dec 04 14:29:00 2005] [error] [client 4.245.93.87] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 08:54:17 2005] [error] [client 147.31.138.75] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 17:34:57 2005] [error] [client 61.138.216.82] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 07:45:45 2005] [error] [client 63.13.186.196] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 10:53:30 2005] [error] [client 218.76.139.20] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 10:48:48 2005] [error] [client 67.166.248.235] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 15:18:36 2005] [error] [client 67.154.58.130] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 01:30:32 2005] [error] [client 211.62.201.48] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 16:45:04 2005] [error] [client 216.216.185.130] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 17:31:39 2005] [error] [client 218.75.106.250] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 19:00:56 2005] [error] [client 68.228.3.15] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 19:14:09 2005] [error] [client 61.220.139.68] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 09:35:12 2005] [error] [client 207.203.80.15] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 10:28:44 2005] [error] [client 198.232.168.9] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 16:24:05 2005] [error] [client 58.225.62.140] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 17:53:43 2005] [error] [client 218.39.132.175] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 12:33:13 2005] [error] [client 208.51.151.210] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 15:59:01 2005] [error] [client 24.83.37.136] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 11:42:43 2005] [error] [client 216.127.124.16] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 05:15:09 2005] [error] [client 222.166.160.184] Directory index forbidden by rule: /var/www/html/"],"[ :: ] [] [ ...] : ////"],[12,["[Sun Dec 04 20:47:17 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 20:47:17 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 07:57:02 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 17:43:12 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 20:47:17 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 20:47:16 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 07:57:02 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 17:43:12 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2"],"[ :: ] [] _ -"]]"
}
}
要测试警报洞察代理，请发送以下请求
POST /_plugins/_ml/agents/<ALERT_INSIGHTS_AGENT_ID>/_execute
{
"parameters": {
"question": "Please provide your insight on this alerts.",
"context": "\n Here is the detail information about alert Error log over 100\n ### Monitor definition\n {\"type\":\"monitor\",\"schema_version\":8,\"name\":\"loghub-apache-error-log\",\"monitor_type\":\"query_level_monitor\",\"enabled\":false,\"enabled_time\":null,\"schedule\":{\"period\":{\"interval\":1,\"unit\":\"MINUTES\"}},\"inputs\":[{\"search\":{\"indices\":[\"loghub-apache-new\"],\"query\":{\"size\":0,\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"10/12/24 11:21 am CST||-1000000h\",\"to\":\"10/12/24 11:21 am CST\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}}}}],\"triggers\":[{\"query_level_trigger\":{\"id\":\"NAq7fpIBRJyww-JMjwP_\",\"name\":\"Error log over 100\",\"severity\":\"1\",\"condition\":{\"script\":{\"source\":\"ctx.results[0].hits.total.value > 100\",\"lang\":\"painless\"}},\"actions\":[]}}],\"last_update_time\":1728714554388,\"owner\":\"alerting\",\"associated_workflows\":[],\"associatedCompositeMonitorCnt\":0,\"item_type\":\"query_level_monitor\",\"id\":\"NQq7fpIBRJyww-JMkAMC\",\"version\":3}\n\n ### Active Alert\n {\"ACTIVE\":1,\"ACKNOWLEDGED\":0,\"ERROR\":0,\"total\":1,\"alerts\":[{\"id\":\"Wgq8fpIBRJyww-JMegNr\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"workflow_id\":\"\",\"workflow_name\":\"\",\"associated_alert_ids\":[],\"schema_version\":5,\"monitor_version\":1,\"monitor_name\":\"loghub-apache-error-log\",\"execution_id\":\"NQq7fpIBRJyww-JMkAMC_2024-10-12T03:18:54.311214115_22d189ce-5e93-4927-b8bb-bcf61b7537e3\",\"trigger_id\":\"NAq7fpIBRJyww-JMjwP_\",\"trigger_name\":\"Error log over 100\",\"finding_ids\":[],\"related_doc_ids\":[],\"state\":\"ACTIVE\",\"error_message\":null,\"alert_history\":[],\"severity\":\"1\",\"action_execution_results\":[],\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"end_time\":null,\"acknowledged_time\":null,\"alert_source\":\"monitor\"}],\"trigger_name\":\"Error log over 100\",\"severity\":\"1\",\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"monitor_name\":\"loghub-apache-error-log\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"alert_source\":\"monitor\",\"triggerID\":\"NAq7fpIBRJyww-JMjwP_\"}\n\n ### Value triggers this alert\n 595\n\n ### Alert query DSL {\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"2024-10-12T03:21:54+00:00||-1000000h\",\"to\":\"2024-10-12T03:21:54+00:00\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}} \n",
"summary": <OUTPUT FROM ALERT SUMMARY AGENT>
}
}
生成警报摘要
您可以通过调用 /api/assistant/summary API 端点来生成警报摘要。要生成警报摘要，index、dsl 和 topNLogPatternData 字段是可选的。如果提供了所有这三个字段，代理将提供带有日志模式分析的摘要；否则，它将提供一般摘要
POST /api/assistant/summary
{
"summaryType": "alerts",
"question": "Please summarize this alert, do not use any tool.",
"context": "\n Here is the detail information about alert Error log over 100\n ### Monitor definition\n {\"type\":\"monitor\",\"schema_version\":8,\"name\":\"loghub-apache-error-log\",\"monitor_type\":\"query_level_monitor\",\"enabled\":false,\"enabled_time\":null,\"schedule\":{\"period\":{\"interval\":1,\"unit\":\"MINUTES\"}},\"inputs\":[{\"search\":{\"indices\":[\"loghub-apache-new\"],\"query\":{\"size\":0,\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"10/12/24 11:21 am CST||-1000000h\",\"to\":\"10/12/24 11:21 am CST\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}}}}],\"triggers\":[{\"query_level_trigger\":{\"id\":\"NAq7fpIBRJyww-JMjwP_\",\"name\":\"Error log over 100\",\"severity\":\"1\",\"condition\":{\"script\":{\"source\":\"ctx.results[0].hits.total.value > 100\",\"lang\":\"painless\"}},\"actions\":[]}}],\"last_update_time\":1728714554388,\"owner\":\"alerting\",\"associated_workflows\":[],\"associatedCompositeMonitorCnt\":0,\"item_type\":\"query_level_monitor\",\"id\":\"NQq7fpIBRJyww-JMkAMC\",\"version\":3}\n\n ### Active Alert\n {\"ACTIVE\":1,\"ACKNOWLEDGED\":0,\"ERROR\":0,\"total\":1,\"alerts\":[{\"id\":\"Wgq8fpIBRJyww-JMegNr\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"workflow_id\":\"\",\"workflow_name\":\"\",\"associated_alert_ids\":[],\"schema_version\":5,\"monitor_version\":1,\"monitor_name\":\"loghub-apache-error-log\",\"execution_id\":\"NQq7fpIBRJyww-JMkAMC_2024-10-12T03:18:54.311214115_22d189ce-5e93-4927-b8bb-bcf61b7537e3\",\"trigger_id\":\"NAq7fpIBRJyww-JMjwP_\",\"trigger_name\":\"Error log over 100\",\"finding_ids\":[],\"related_doc_ids\":[],\"state\":\"ACTIVE\",\"error_message\":null,\"alert_history\":[],\"severity\":\"1\",\"action_execution_results\":[],\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"end_time\":null,\"acknowledged_time\":null,\"alert_source\":\"monitor\"}],\"trigger_name\":\"Error log over 100\",\"severity\":\"1\",\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"monitor_name\":\"loghub-apache-error-log\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"alert_source\":\"monitor\",\"triggerID\":\"NAq7fpIBRJyww-JMjwP_\"}\n\n ### Value triggers this alert\n 595\n\n ### Alert query DSL {\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"2024-10-12T03:21:54+00:00||-1000000h\",\"to\":\"2024-10-12T03:21:54+00:00\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}} \n",
"index": "loghub-apache-new",
"dsl": "{\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"2024-10-12T03:21:54+00:00||-1000000h\",\"to\":\"2024-10-12T03:21:54+00:00\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}}",
"topNLogPatternData": "[[539,["[Sun Dec 04 07:12:44 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 06:19:18 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 07:18:00 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 16:52:49 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 06:59:47 2005] [error] mod_jk child workerEnv in error state 8","[Sun Dec 04 07:11:22 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 07:18:00 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 17:01:47 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 17:31:12 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 05:04:04 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 20:24:49 2005] [error] mod_jk child workerEnv in error state 8","[Sun Dec 04 06:16:23 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 20:47:17 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 06:30:43 2005] [error] mod_jk child workerEnv in error state 6","[Mon Dec 05 06:35:27 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 07:07:30 2005] [error] mod_jk child workerEnv in error state 8","[Sun Dec 04 07:18:00 2005] [error] mod_jk child workerEnv in error state 7","[Sun Dec 04 16:32:56 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 17:01:47 2005] [error] mod_jk child workerEnv in error state 6","[Sun Dec 04 16:52:49 2005] [error] mod_jk child workerEnv in error state 8"],"[ :: ] [] _ "],[32,["[Sun Dec 04 14:29:00 2005] [error] [client 4.245.93.87] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 08:54:17 2005] [error] [client 147.31.138.75] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 17:34:57 2005] [error] [client 61.138.216.82] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 07:45:45 2005] [error] [client 63.13.186.196] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 10:53:30 2005] [error] [client 218.76.139.20] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 10:48:48 2005] [error] [client 67.166.248.235] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 15:18:36 2005] [error] [client 67.154.58.130] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 01:30:32 2005] [error] [client 211.62.201.48] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 16:45:04 2005] [error] [client 216.216.185.130] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 17:31:39 2005] [error] [client 218.75.106.250] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 19:00:56 2005] [error] [client 68.228.3.15] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 19:14:09 2005] [error] [client 61.220.139.68] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 09:35:12 2005] [error] [client 207.203.80.15] Directory index forbidden by rule: /var/www/html/","[Mon Dec 05 10:28:44 2005] [error] [client 198.232.168.9] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 16:24:05 2005] [error] [client 58.225.62.140] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 17:53:43 2005] [error] [client 218.39.132.175] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 12:33:13 2005] [error] [client 208.51.151.210] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 15:59:01 2005] [error] [client 24.83.37.136] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 11:42:43 2005] [error] [client 216.127.124.16] Directory index forbidden by rule: /var/www/html/","[Sun Dec 04 05:15:09 2005] [error] [client 222.166.160.184] Directory index forbidden by rule: /var/www/html/"],"[ :: ] [] [ ...] : ////"],[12,["[Sun Dec 04 20:47:17 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 20:47:17 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 07:57:02 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 17:43:12 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 20:47:17 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 20:47:16 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 07:57:02 2005] [error] mod_jk child init 1 -2","[Sun Dec 04 17:43:12 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2","[Mon Dec 05 11:06:52 2005] [error] mod_jk child init 1 -2"],"[ :: ] [] _ -"]]"
}
下表描述了助手摘要 API 参数。
| 参数 | 必需/可选 | 描述 |
|---|---|---|
summaryType | 必需 | 指定调用此 API 的应用程序类型。对于警报洞察，使用 alerts。 |
question | 必需 | 指定用户关于警报洞察的问题。默认值为 Please summarize this alert, do not use any tool. |
context | 必需 | 提供警报上下文，包括警报监控器定义、活动警报和触发值。 |
index | 可选 | 警报监控的索引。如果未提供此参数，则不返回日志模式分析。 |
dsl | 可选 | 用于警报监控的 DSL 查询。如果未提供此参数，则不返回日志模式分析。 |
topNLogPatternData | 可选 | 警报触发数据的日志模式。如果未提供此参数，则不返回日志模式分析。 |
生成警报洞察
您可以通过调用 /api/assistant/insight API 端点来生成警报洞察。要生成警报洞察，需要以下所有参数
POST /api/assistant/insight
{
"summaryType": "alerts",
"insightType": "user_insight"
"context": "\n Here is the detail information about alert Error log over 100\n ### Monitor definition\n {\"type\":\"monitor\",\"schema_version\":8,\"name\":\"loghub-apache-error-log\",\"monitor_type\":\"query_level_monitor\",\"enabled\":false,\"enabled_time\":null,\"schedule\":{\"period\":{\"interval\":1,\"unit\":\"MINUTES\"}},\"inputs\":[{\"search\":{\"indices\":[\"loghub-apache-new\"],\"query\":{\"size\":0,\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"10/12/24 11:21 am CST||-1000000h\",\"to\":\"10/12/24 11:21 am CST\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}}}}],\"triggers\":[{\"query_level_trigger\":{\"id\":\"NAq7fpIBRJyww-JMjwP_\",\"name\":\"Error log over 100\",\"severity\":\"1\",\"condition\":{\"script\":{\"source\":\"ctx.results[0].hits.total.value > 100\",\"lang\":\"painless\"}},\"actions\":[]}}],\"last_update_time\":1728714554388,\"owner\":\"alerting\",\"associated_workflows\":[],\"associatedCompositeMonitorCnt\":0,\"item_type\":\"query_level_monitor\",\"id\":\"NQq7fpIBRJyww-JMkAMC\",\"version\":3}\n\n ### Active Alert\n {\"ACTIVE\":1,\"ACKNOWLEDGED\":0,\"ERROR\":0,\"total\":1,\"alerts\":[{\"id\":\"Wgq8fpIBRJyww-JMegNr\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"workflow_id\":\"\",\"workflow_name\":\"\",\"associated_alert_ids\":[],\"schema_version\":5,\"monitor_version\":1,\"monitor_name\":\"loghub-apache-error-log\",\"execution_id\":\"NQq7fpIBRJyww-JMkAMC_2024-10-12T03:18:54.311214115_22d189ce-5e93-4927-b8bb-bcf61b7537e3\",\"trigger_id\":\"NAq7fpIBRJyww-JMjwP_\",\"trigger_name\":\"Error log over 100\",\"finding_ids\":[],\"related_doc_ids\":[],\"state\":\"ACTIVE\",\"error_message\":null,\"alert_history\":[],\"severity\":\"1\",\"action_execution_results\":[],\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"end_time\":null,\"acknowledged_time\":null,\"alert_source\":\"monitor\"}],\"trigger_name\":\"Error log over 100\",\"severity\":\"1\",\"start_time\":\"10/12/24 11:18 am CST\",\"last_notification_time\":\"10/12/24 11:21 am CST\",\"monitor_name\":\"loghub-apache-error-log\",\"monitor_id\":\"NQq7fpIBRJyww-JMkAMC\",\"alert_source\":\"monitor\",\"triggerID\":\"NAq7fpIBRJyww-JMjwP_\"}\n\n ### Value triggers this alert\n 595\n\n ### Alert query DSL {\"query\":{\"bool\":{\"filter\":[{\"range\":{\"Time\":{\"from\":\"2024-10-12T03:21:54+00:00||-1000000h\",\"to\":\"2024-10-12T03:21:54+00:00\",\"include_lower\":true,\"include_upper\":true,\"boost\":1}}},{\"term\":{\"Level\":{\"value\":\"error\",\"boost\":1}}}],\"adjust_pure_negative\":true,\"boost\":1}}} \n",
"question": "Please provide your insight on this alerts.",
"summary": <OUTPUT FROM ALERT SUMMARY AGENT>
}
下表描述了助手洞察 API 参数。
| 参数 | 必需/可选 | 描述 |
|---|---|---|
summaryType | 必需 | 指定调用此 API 的应用程序类型。对于警报洞察，使用 alerts。 |
insightType | 必需 | 定义警报类型。集群指标警报使用 os_insight，其他警报类型使用 user_insight。 |
question | 必需 | 指定用户关于警报洞察的问题。默认值为 Please provide your insight on this alerts. |
context | 必需 | 提供警报上下文，包括警报监控器定义、活动警报和触发值。 |
summary | 必需 | 警报摘要代理返回的结果。 |
在 OpenSearch Dashboards 中查看警报洞察
在查看警报洞察之前，您必须在 OpenSearch Dashboards 中配置警报。有关更多信息，请参阅警报。
要在 OpenSearch Dashboards 中查看警报洞察，请按照以下步骤操作
-
在顶部菜单栏中，转到 OpenSearch 插件 > 警报。将显示所有警报。
-

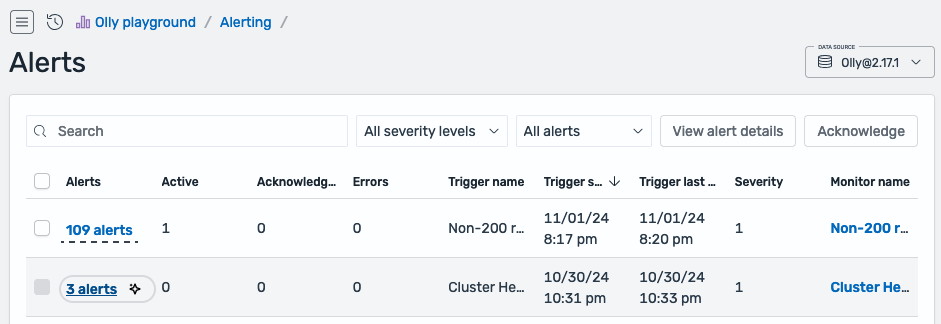

将鼠标悬停在所需监控器的警报上。如果已配置警报洞察，您将在警报列中警报旁边看到一个闪光图标（
），如下图所示。
-

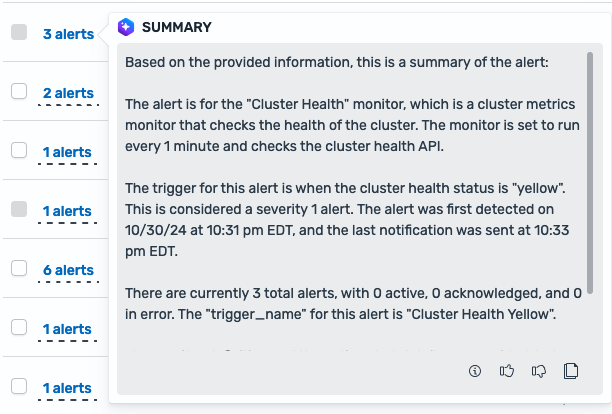

选择警报标签或闪光图标。您将看到生成的摘要，如下图所示。
-

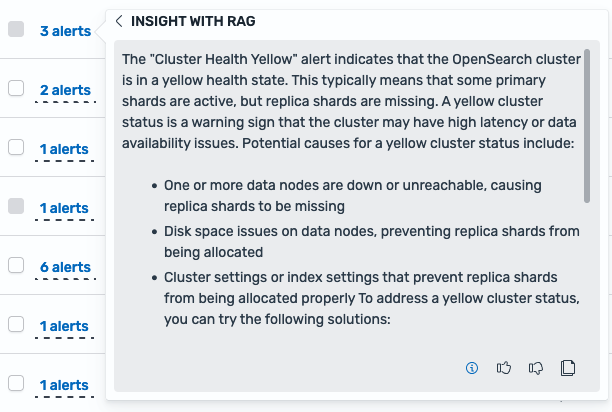

选择信息图标（
）以查看警报洞察。您将看到生成的警报洞察，如下图所示。
